Kuzuri Kijiji, East Orange
Townhouses, parking and access roads recorded as an orthomosaic, with separate elevation and coverage visualizations.
What this capture was for.
Photogrammetry / site map — Kuzuri Kijiji, East Orange. The packet includes orthomosaic + dem + coverage report.
The existing site was processed in DroneDeploy. The displayed color DEM is a visualization, not a calibrated height raster. Visual mapping and relative context do not replace a certified survey.
A submitted brief starts a feasibility review. It does not authorize a flight, confirm a date, or create a contract. Conditions and approvals can change what is operationally possible.
Mission
Photogrammetry / site map — Kuzuri Kijiji, East Orange
Outputs
Orthomosaic + DEM + coverage report
Category
Mapping
Site
Kuzuri Kijiji · 19 Freeway Dr E, East Orange
Opened
1973 · 247 townhouse units on 8.2 acres
Captured
Jul 6, 2026
Frames aligned
123 / 123 (100%)
Coverage
99.7% of AOI
Mapped area
491,250 ft² (~11.3 acres, complex + surroundings)
Ortho GSD
1.24 in/px
DEM GSD
4.98 in/px
Point cloud
5.1 million pts · 10.5 pts/ft²
Sensor
DJI FC3411
How photogrammetry is flown
Kuzuri Kijiji. Capture with a purpose.
Kuzuri Kijiji, East Orange — 19 Freeway Drive East, July 6, 2026, 123 frames, 99.7% coverage, 1.24 in/px. The 1973 cooperative townhouses (Beautiful Village) and the surrounding block, near I-280 and the Garden State Parkway. Switch a pattern to see what nadir, crosshatch, and oblique actually do. Paths illustrate capture strategies; they are not a replay of flight telemetry.
Flight pattern
Nadir lawnmower
The aircraft flies parallel lines with the camera pointed straight down. High overlap is what lets software stitch a measured map. Rooftops and pavement read clearly; walls do not.
- Overlap / capture
- Typically 75% front / 70% side
- What you get
- Orthomosaic, DSM/DEM, weak facades
Ground texture is the July 6, 2026 orthomosaic of Kuzuri Kijiji, East Orange — a real Baron Aerial Media mapping site, shown at the end of this illustrative capture sequence. Switch patterns to see how the path changes what the reconstructor can solve.
Site model
One capture. Separate deliverables.

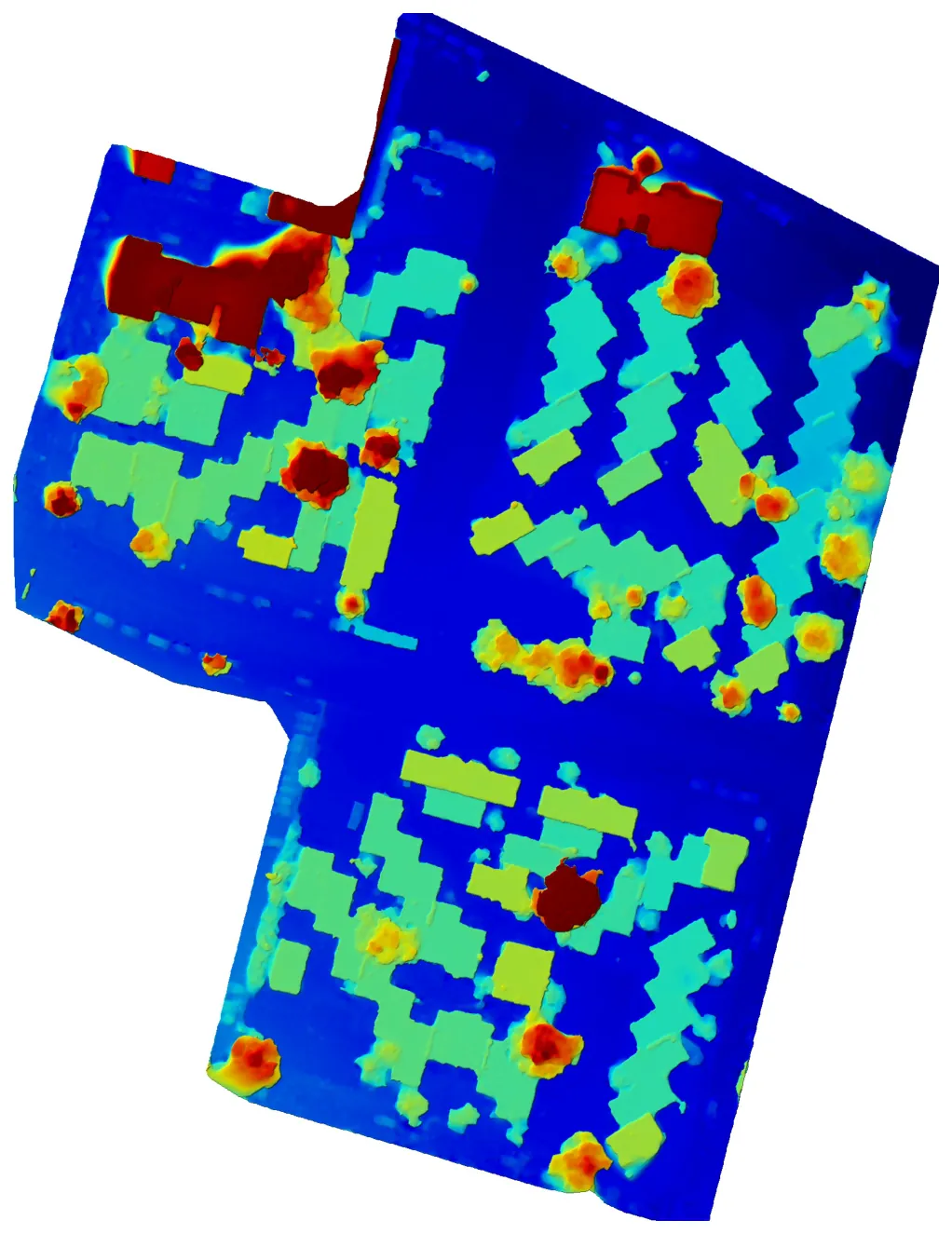

Explore the orthomosaic and elevation visualization as separate layers. The color DEM is shown as a reference image; accurate terrain geometry requires a calibrated elevation export.
How the mesh is built
Coverage across the captured site.
After capture, each frame is aligned to a 3D model. Capture locations and the colored coverage layer describe the source imagery. A mapping packet can include this diagram with the orthomosaic so a GC or planner can see how the model was built. This still is a reconstruction report from Baron Aerial Media processing — the coverage visualization accompanying this site’s mapping packet.
